***NOTE: Requires Aftermarket Rear Bumper Lip Spoiler/Diffuser for fitment compatibility or modification/trimming of OEM Factory Rear Lower Diffuser Panel***
Available Now - Compatibility with LEXON Rear Diffuser : Click Here
**Direct Bolt-On Fitment
COMING SOON - Compatibility with TOM'S Racing Rear Diffuser : Click Here
**For fitment with the TOM'S Racing Rear Diffuser - Optional relocation hanger bracket sold separately.
Application list:
- 2021+ Lexus IS300 (Turbo / AWD)
- 2021+ Lexus IS350

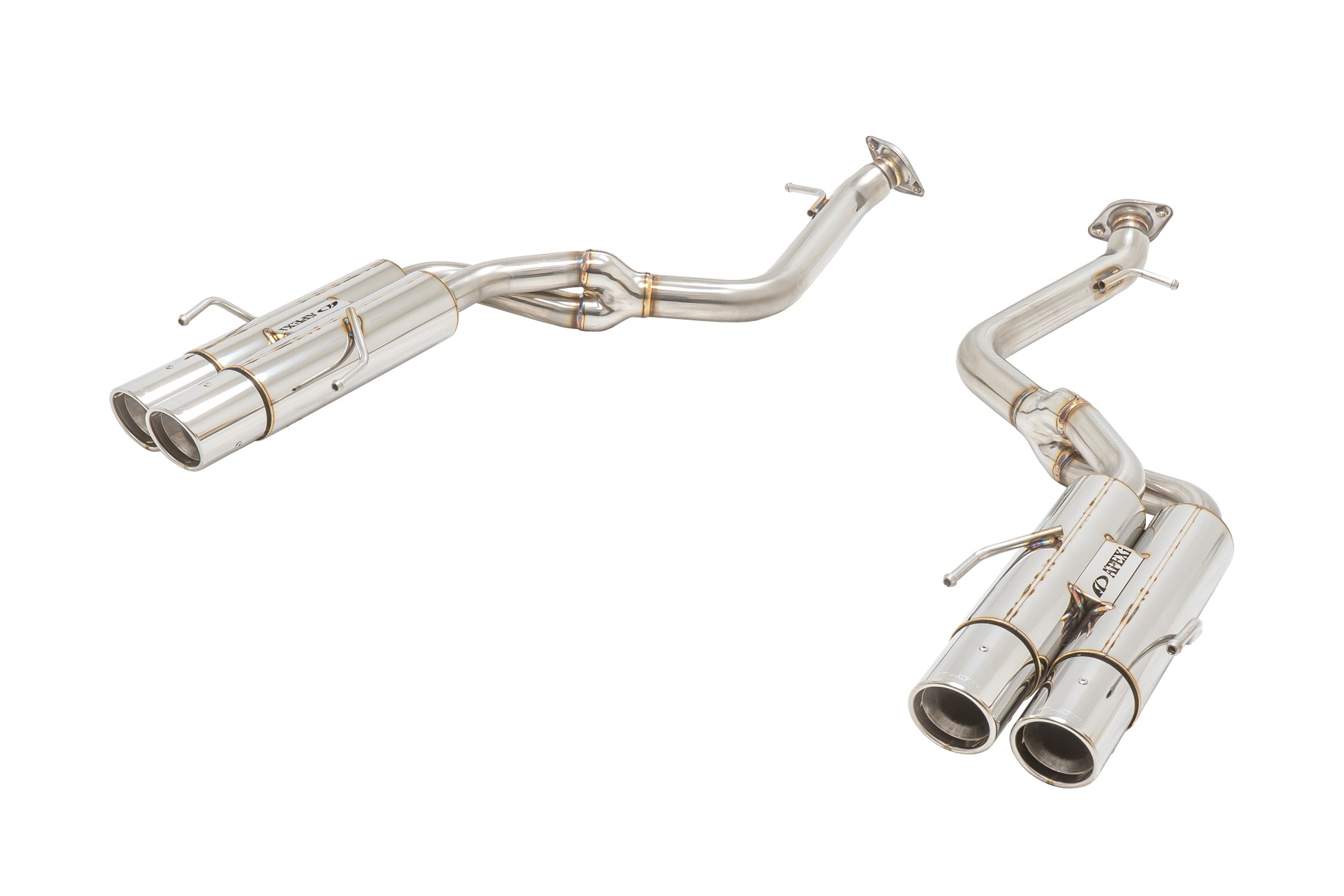

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradation appearance.
Vehicle in video: Lexus IS350 F-Sport (2021+)
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | - 164-KT22 - Titanium - 164AKT22 - Stainless Steel |
| Year | 2021, 2022, 2023, 2024 |
| Make | Lexus |
| Model | IS300 Turbo / IS300 AWD / IS350 |
| Body Style | 4-Door Sedan |
| Engine | 2GR-FSE, 2GR-FKS, 8AR-FTS |
| Chassis | ASE30, GSE31, GSE36 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60.5mm. x 2 -> 50mm. x 4 |
| Tip Diameter | 93mm. x 4 |
| Pieces | 2 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | - Titanium - Stainless Steel |
| System Weight | -- |
| Compatible Rear Diffuser |
Available Now - LEXON Rear Diffuser : Click Here COMING SOON - TOM'S Racing Rear Diffuser : Click Here |
| Special Notes |
Sound Level: 87 dB @ 4,500 RPM. Modular design-> Midpipe and Rear Section can be interchanged with factory exhaust components. ***NOTE: Midpipe and Rear Section can be interchanged with factory exhaust components. ***CAUTION: Do not use harsh car wash soap or metal polish cleaners when cleaning titanium tips. We recommend using 70% isopropyl alcohol with a microfiber towel to clean the titanium tips.*** |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
