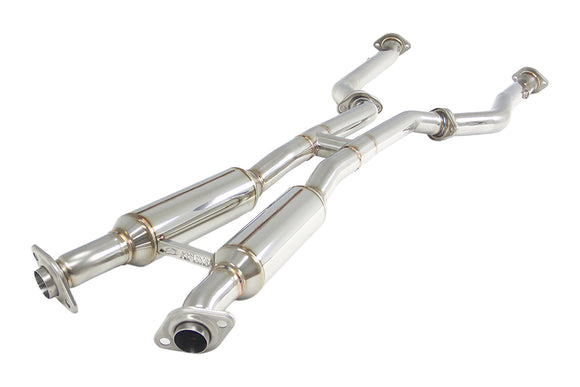

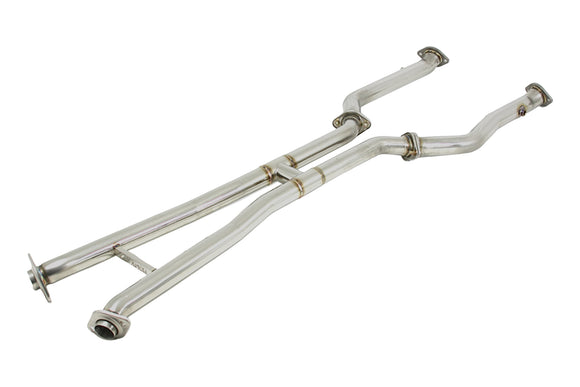

N1-X Evolution Extreme Midpipe
2015+ Lexus RC-F
The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler. Optimum exhaust efficiency is achieved through the mid-pipes running parallel between the catalytic converter and rear muffler section. The H-style piping design was opted to equalize the pressure in both exhaust pipes. Our unique modular design allow the mid-pipes to be interchangeable with the factory OEM exhaust system components along with the rear section which is sold separately.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis - Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
- Compatible with the N1-X Evolution Extreme rear section part number 164-KT01 (Titanium Tips) or 164AKT01 (Stainless Steel Tips)
| Bolt-On | Yes |
|---|---|
| Part Number |
- 144-KT01: Resonated - 144-KT01P: Non-Resonated |
| Year | 2015, 2016. 2017, 2018, 2019, 2020, 2021 |
| Make | Lexus |
| Model | RC-F |
| Body Style | 2-Door Coupe |
| Engine | 2UR-GSE |
| Chassis | USC10 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 65mm. x 2 - 50mm. x 4 |
| Pieces | 3 |
| Piping Material | SUS304 Stainless Steel |
| System Weight | Mid-pipe only 25.90 lbs. (Stock- 35.50 lbs.) 7.6 lbs. lighter than OEM |
| Special Notes | Sound Level (with part # 164-KT01 or 164AKT01): 92.2 dB @ 4,500 RPM. Modular design-> Mid-pipe and Rear Section can be interchanged with factory exhaust components. |
 |
