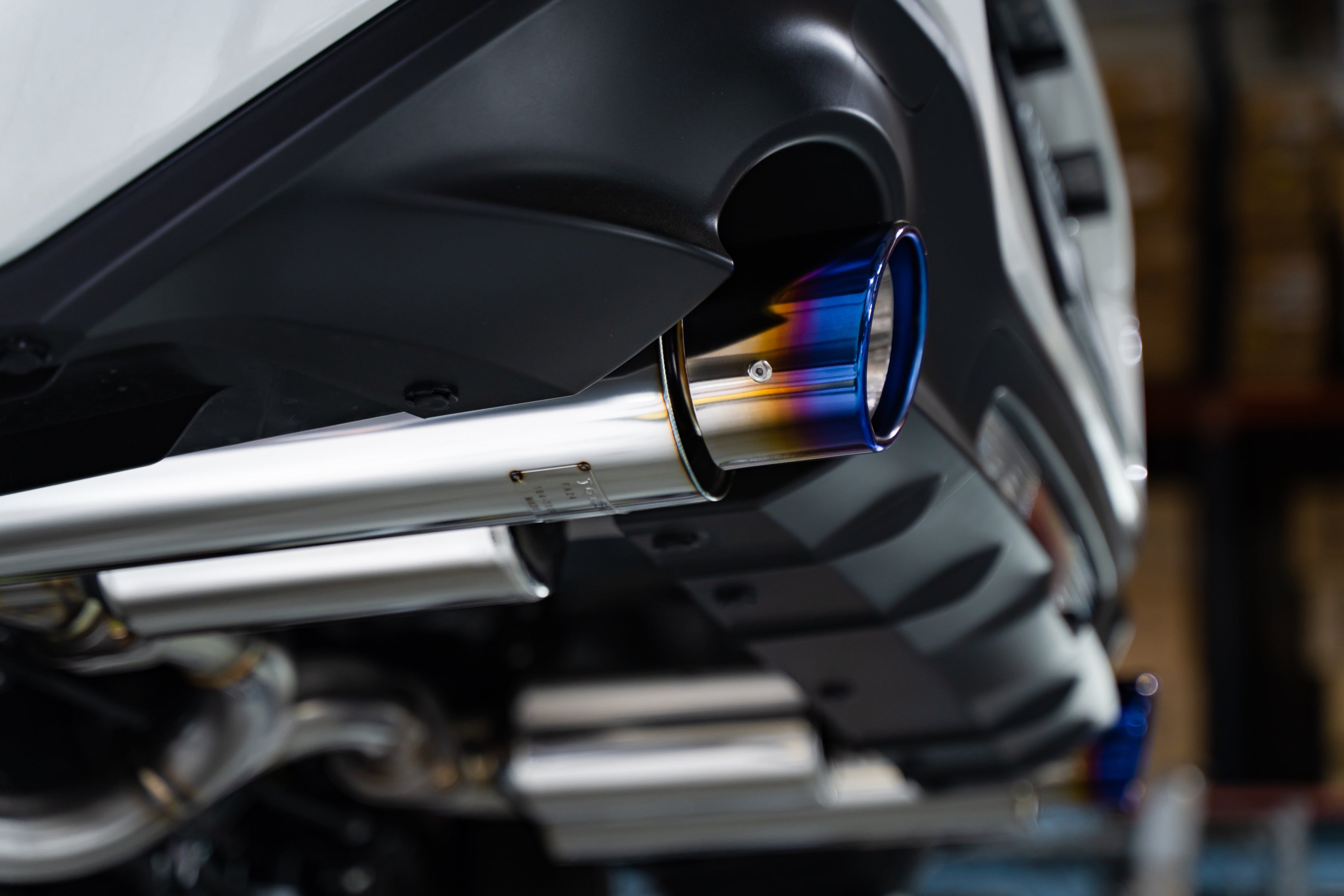

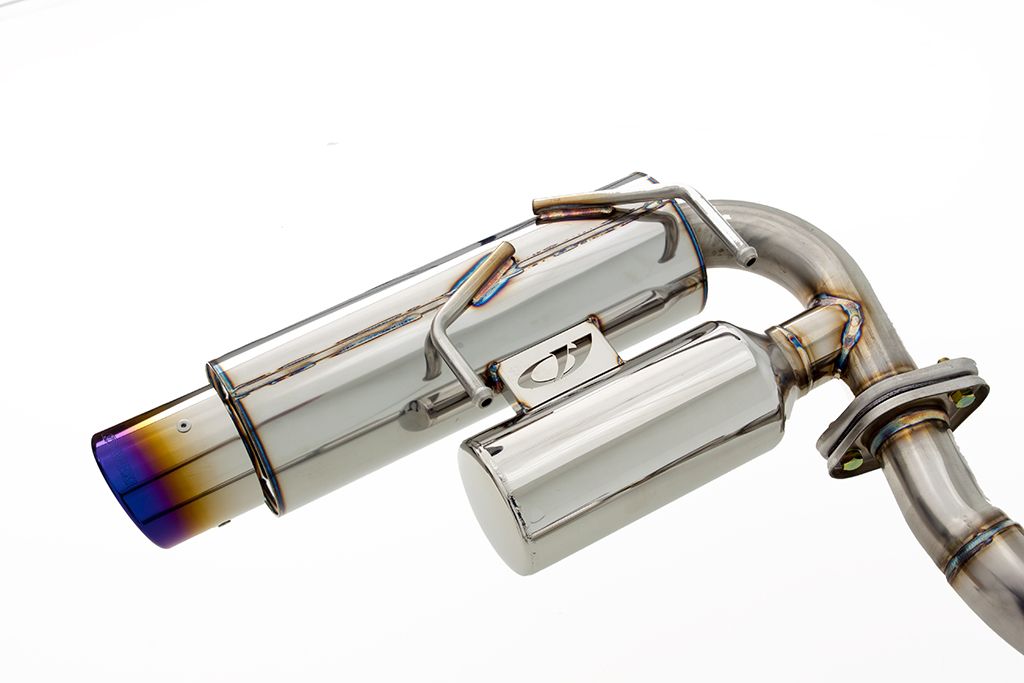

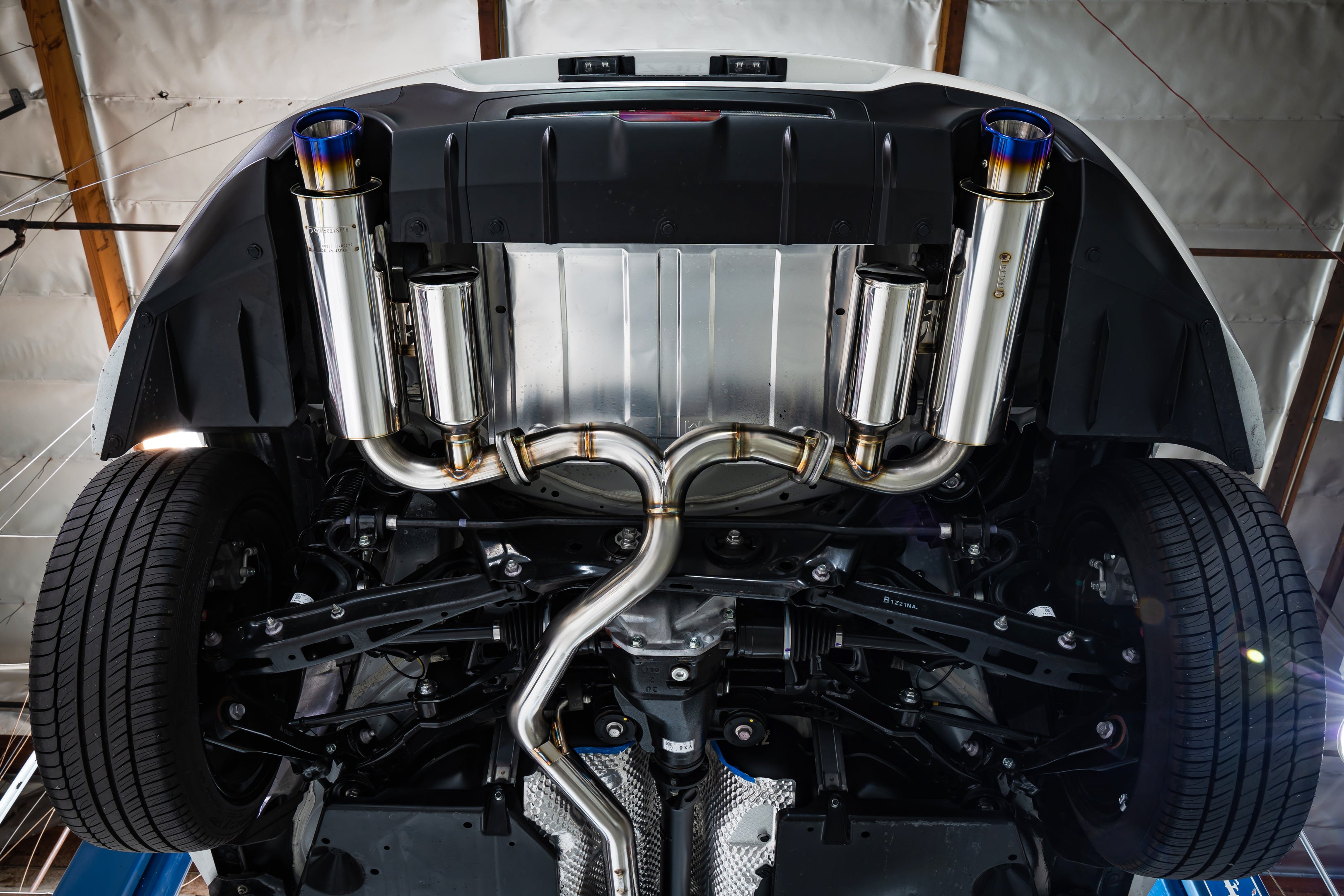

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.
PRODUCT FEATURES:
- High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
- Matched and manufactured for select chassis
- Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
| Bolt-On | Yes |
|---|---|
| Part Number | 164-T008J |
| Year | 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 |
| Make | Toyota, Scion, Subaru |
| Model | FRS, 86, GR86, BRZ |
| Body Style | 2-Door Coupe |
| Engine |
- 2.4 L FA24D H4 - 2.0L FA20 H4 |
| Chassis | ZN6, ZC6, ZN8, ZD8 |
| Exhaust Type | N1 Evolution Extreme Muffler (N1-X) |
| Piping Diameter | 60mm. to 54mm. x 2 |
| Tip Diameter | 93mm. x 2 |
| Pieces | 3 |
| Exhaust Tip Style | Titanium Round- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | TP270 Titanium |
| System Weight | 31.00 lbs. |
| Special Notes | Package Dimension: 84"x12"x20", Package Weight: 47 lbs. |
 |
